So after watching a talk at Defcon 23 about the Tracking Point rifle scope (When IoT Attacks:
Hacking A Linux-Powered Rifle
) I got interested and wanted to know what was in budget for some rifle hacking myself. What was identified in this talk was that it was possible to remotely change the point of impact of the bullet by adjusting the ballistic coefficient of the round within the riflescope settings. This meant that it was possible to aim at one target but the bullet to hit somewhere else.

Well this is where the ATN X-sight came in to play. As an avid shooter already I had seen one of these scopes at my local store, and decided that they were pretty neat and at a price point that I could afford that would allow me to enter the night vision world. Before I splashed the cash I did some research on the device first and found a helpful (until I got banned) group devoted to these scopes on Facebook. Over the course of a few months I asked questions such as:

  • Can you role back the ATN firmware to an older version?
  • What services are running on the scope?
  • Has anyone been able to look into the firmware binaries?
  • Has anyone modified the stock firmware to offer extra functionality?

Side note: Well, I ended up getting banned, and I’m not sure by which admin, didn’t even give me a warning. Playing with a device that I own is not against the law. Many people do it in order to improve the device. When ATN stop supporting this product (and they will) members of that group will be running to guys like me for help in order to continue getting life out of the product.

Anyway, back to the point. I managed to pick up a second hand ATN X-Sight from a fellow shooter in the shooting community for a bargain price. AP, if you’re reading this many thanks for the sight. I hope the Black Label Gunpowder Proof rum tasted good?

I know you’re by now wondering what this scope looks like so I better give you a photo of the thing.
IMG_3120

When you look through the scope you get a reticle and some extra information at the top such as wifi status, gps status, bearing (compass), time and so on…
IMG_3124

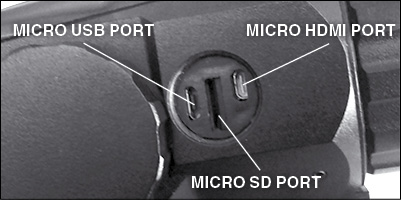

Externally the device has a battery compartment, microSD port (32GB max), microUSB (Micro-B USB) and a microHDMI out.
1231

For more details about the device and how it works see the online manual here.

Well before the scope arrived I started to play with the firmware using common *nix tools. I managed to find a repo online contain all the version of the firmware for the ATN X-sight. Unfortunately I lost the link for the repo, but that was after I downloaded the bins myself first. Here they are should anyone need them. As of writing (24th Nov 2015) the latest version is 1.8.07.343 (known in the X-sight community just as 343).

The first tool I decided to use was binwalk in order to see if could do any magic for me. I’ve not used this tool before but a quick look at the homepage found me the Quick Start Guide on github.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
root@kali:~/Desktop/xSightFirmware# binwalk -tMre xsight1.8.07.343.bin

Scan Time:     2015-10-23 13:36:18
Target File:   xsight1.8.07.343.bin
MD5 Checksum:  9488a5a25ad7dea2ca942c980bb47182
Signatures:    285

DECIMAL       HEXADECIMAL     DESCRIPTION
--------------------------------------------------------------------------------
123769        0x1E379         Copyright string: " (C) 2004-2007c: 0x"
351767        0x55E17         mcrypt 2.2 encrypted data, algorithm:
                              blowfish-448, mode: CBC, keymode: 8bit
4754382       0x488BCE        XML document, version: "1.0"
4754882       0x488DC2        XML document, version: "1.0"
5041405       0x4CECFD        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5041457       0x4CED31        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5041509       0x4CED65        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5041561       0x4CED99        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5041613       0x4CEDCD        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5041665       0x4CEE01        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5041717       0x4CEE35        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5041769       0x4CEE69        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5043485       0x4CF51D        LZMA compressed data, properties: 0x5D,
                              dictionary size: 131072 bytes, missing
                              uncompressed size
5043537       0x4CF551        LZMA compressed data, properties: 0x5D,
                              dictionary size: 131072 bytes, missing
                              uncompressed size
5043589       0x4CF585        LZMA compressed data, properties: 0x5D,
                              dictionary size: 131072 bytes, missing
                              uncompressed size
5043641       0x4CF5B9        LZMA compressed data, properties: 0x5D,
                              dictionary size: 131072 bytes, missing
                              uncompressed size
5043693       0x4CF5ED        LZMA compressed data, properties: 0x5D,
                              dictionary size: 131072 bytes, missing
                              uncompressed size
5043745       0x4CF621        LZMA compressed data, properties: 0x5D,
                              dictionary size: 131072 bytes, missing
                              uncompressed size
5043797       0x4CF655        LZMA compressed data, properties: 0x5D,
                              dictionary size: 131072 bytes, missing
                              uncompressed size
5043849       0x4CF689        LZMA compressed data, properties: 0x5D,
                              dictionary size: 131072 bytes, missing
                              uncompressed size
5048035       0x4D06E3        LZMA compressed data, properties: 0xC0,
                              dictionary size: 65536 bytes, uncompressed size:
                              131072 bytes
5048179       0x4D0773        LZMA compressed data, properties: 0xC0,
                              dictionary size: 65536 bytes, uncompressed size:
                              131072 bytes
5049775       0x4D0DAF        LZMA compressed data, properties: 0xC0,
                              dictionary size: 65536 bytes, uncompressed size:
                              131072 bytes
5088023       0x4DA317        HTML document header
5187125       0x4F2635        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5187185       0x4F2671        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5187225       0x4F2699        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5187265       0x4F26C1        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5187305       0x4F26E9        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5187345       0x4F2711        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5188365       0x4F2B0D        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5188425       0x4F2B49        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5188465       0x4F2B71        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5188505       0x4F2B99        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5188545       0x4F2BC1        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5188585       0x4F2BE9        LZMA compressed data, properties: 0x5D,
                              dictionary size: 65536 bytes, missing
                              uncompressed size
5238201       0x4FEDB9        LZMA compressed data, properties: 0x88,
                              dictionary size: 65536 bytes, uncompressed size:
                              196608 bytes
5955583       0x5ADFFF        LZMA compressed data, properties: 0xC0,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 256 bytes
5957567       0x5AE7BF        LZMA compressed data, properties: 0xC0,
                              dictionary size: 65536 bytes, uncompressed size:
                              200 bytes
6024002       0x5BEB42        LZMA compressed data, properties: 0x5A,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 65538 bytes
6081344       0x5CCB40        YAFFS filesystem
6194836       0x5E8694        ASCII cpio archive (SVR4 with no CRC), file name:
                              "dev", file name length: "0x00000004", file
                              size: "0x00000000"
6194952       0x5E8708        ASCII cpio archive (SVR4 with no CRC), file name:
                              "dev/console", file name length: "0x0000000C",
                              file size: "0x00000000"
6195076       0x5E8784        ASCII cpio archive (SVR4 with no CRC), file name:
                              "root", file name length: "0x00000005", file
                              size: "0x00000000"
6195192       0x5E87F8        ASCII cpio archive (SVR4 with no CRC), file name:
                              "TRAILER!!!", file name length: "0x0000000B",
                              file size: "0x00000000"
9219152       0x8CAC50        Linux kernel version "2.6.38.8
                              (pwdev@flexlm.od.atncorp.com) (gcc version 4.7.3
                              (Sourrp.com) (gcc version 4.7.3 (Sourcery
                              CodeBench Lite 2013.05-24)"

9247780       0x8D1C24        gzip compressed data, maximum compression, from
                              Unix, last modified: Thu Jul 23 12:50:08 2015
9340553       0x8E8689        LZMA compressed data, properties: 0x65,
                              dictionary size: 8388608 bytes, uncompressed
                              size: 1048576 bytes
9793604       0x957044        Ubiquiti partition header, header size: 56 bytes,
                              name: "NAME=%s", base address: 0x00000000, data
                              size: 1920298595 bytes
9841948       0x962D1C        xz compressed data
19017984      0x1223100       JPEG image data, JFIF standard  1.01
19018014      0x122311E       TIFF image data, big-endian
19044608      0x1229900       JPEG image data, JFIF standard  1.01
19077376      0x1231900       JPEG image data, JFIF standard  1.01
19077406      0x123191E       TIFF image data, big-endian
19112192      0x123A100       JPEG image data, JFIF standard  1.01
19126528      0x123D900       JPEG image data, JFIF standard  1.02
19130624      0x123E900       JPEG image data, JFIF standard  1.02
19132672      0x123F100       JPEG image data, JFIF standard  1.02
19173396      0x1249014       ISO 9660 CD-ROM filesystem data, version 3.0
                              volume name: "",
20089088      0x1328900       PNG image, 14 x 8, 8-bit/color RGBA,
                              non-interlaced
20090064      0x1328CD0       Zlib compressed data, best compression,
                              uncompressed size >= 456
20091136      0x1329100       PNG image, 71 x 58, 8-bit/color RGBA,
                              non-interlaced
20092112      0x13294D0       Zlib compressed data, best compression,
                              uncompressed size >= 16530
20097280      0x132A900       PNG image, 13 x 13, 8-bit/color RGBA,
                              non-interlaced
20098256      0x132ACD0       Zlib compressed data, best compression,
                              uncompressed size >= 689
20099328      0x132B100       PNG image, 41 x 49, 8-bit/color RGBA,
                              non-interlaced
20100304      0x132B4D0       Zlib compressed data, best compression,
                              uncompressed size >= 8085
20103424      0x132C100       PNG image, 16 x 13, 8-bit/color RGBA,
                              non-interlaced
20104400      0x132C4D0       Zlib compressed data, best compression,
                              uncompressed size >= 845
20105472      0x132C900       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
20106448      0x132CCD0       Zlib compressed data, best compression,
                              uncompressed size >= 1040
20107520      0x132D100       PNG image, 20 x 28, 8-bit/color RGBA,
                              non-interlaced
20108496      0x132D4D0       Zlib compressed data, best compression,
                              uncompressed size >= 2268
20109568      0x132D900       PNG image, 46 x 52, 8-bit/color RGBA,
                              non-interlaced
20110544      0x132DCD0       Zlib compressed data, best compression,
                              uncompressed size >= 9620
20113664      0x132E900       PNG image, 46 x 52, 8-bit/color RGBA,
                              non-interlaced
20114640      0x132ECD0       Zlib compressed data, best compression,
                              uncompressed size >= 9620
20117760      0x132F900       JPEG image data, JFIF standard  1.01
22536469      0x157E115       Copyright string: " 2014 Brightcove, Inc.
                              https://github.com/videojs/video.js/blobgithub.co
                              m/videojs/video.js/blob/master/LICENSE */ "

22608136      0x158F908       Zlib compressed data, best compression,
                              uncompressed size >= 35480
22663424      0x159D100       XML document, version: "1.0"
22685952      0x15A2900       PNG image, 14 x 8, 8-bit/color RGBA,
                              non-interlaced
22686928      0x15A2CD0       Zlib compressed data, best compression,
                              uncompressed size >= 456
22688000      0x15A3100       PNG image, 71 x 58, 8-bit/color RGBA,
                              non-interlaced
22688976      0x15A34D0       Zlib compressed data, best compression,
                              uncompressed size >= 16530
22694144      0x15A4900       JPEG image data, EXIF standard
22694156      0x15A490C       TIFF image data, little-endian
22712576      0x15A9100       PNG image, 13 x 13, 8-bit/color RGBA,
                              non-interlaced
22713552      0x15A94D0       Zlib compressed data, best compression,
                              uncompressed size >= 689
22714624      0x15A9900       PNG image, 16 x 13, 8-bit/color RGBA,
                              non-interlaced
22715600      0x15A9CD0       Zlib compressed data, best compression,
                              uncompressed size >= 845
22716672      0x15AA100       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
22717648      0x15AA4D0       Zlib compressed data, best compression,
                              uncompressed size >= 1040
22718720      0x15AA900       PNG image, 46 x 52, 8-bit/color RGBA,
                              non-interlaced
22719688      0x15AACC8       Zlib compressed data, best compression,
                              uncompressed size >= 9620
22722816      0x15AB900       PNG image, 46 x 52, 8-bit/color RGBA,
                              non-interlaced
22723792      0x15ABCD0       Zlib compressed data, best compression,
                              uncompressed size >= 9620
23489964      0x1666DAC       LZMA compressed data, properties: 0x5D,
                              dictionary size: 1048576 bytes, missing
                              uncompressed size
23490576      0x1667010       LZMA compressed data, properties: 0x5D,
                              dictionary size: 1048576 bytes, missing
                              uncompressed size
23896808      0x16CA2E8       LZMA compressed data, properties: 0x5D,
                              dictionary size: 262144 bytes, missing
                              uncompressed size
25381344      0x18349E0       LZMA compressed data, properties: 0x5D,
                              dictionary size: 1048576 bytes, missing
                              uncompressed size
28759000      0x1B6D3D8       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
28777000      0x1B71A28       LZMA compressed data, properties: 0xD8,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 50331648 bytes
28777480      0x1B71C08       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
29170188      0x1BD1A0C       LZMA compressed data, properties: 0x5D,
                              dictionary size: 2097152 bytes, missing
                              uncompressed size
29429148      0x1C10D9C       LZMA compressed data, properties: 0x76,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 100663296 bytes
29429628      0x1C10F7C       LZMA compressed data, properties: 0xD8,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 50331648 bytes
29430112      0x1C11160       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
29507717      0x1C24085       Copyright string: " (C) 2006 Free Software
                              Foundation, Inc.ion, Inc."

29523536      0x1C27E50       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
29564840      0x1C31FA8       LZMA compressed data, properties: 0xD8,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 50331648 bytes
29565328      0x1C32190       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
29684308      0x1C4F254       ELF 32-bit LSB MathCoPro/FPU/MAU Required (SYSV)
29684324      0x1C4F264       ELF 32-bit LSB no machine, version 1 (GNU/Linux)
29684352      0x1C4F280       ELF 32-bit LSB no machine,
29707072      0x1C54B40       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
29722040      0x1C585B8       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
29735928      0x1C5BBF8       LZMA compressed data, properties: 0xD8,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 50331648 bytes
29736408      0x1C5BDD8       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
29763752      0x1C628A8       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
29856752      0x1C793F0       LZMA compressed data, properties: 0x5D,
                              dictionary size: 16777216 bytes, missing
                              uncompressed size
29864176      0x1C7B0F0       LZMA compressed data, properties: 0x63,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 2097152 bytes
29876272      0x1C7E030       ELF 32-bit LSB relocatable, ARM, version 1 (SYSV)
29880392      0x1C7F048       LZMA compressed data, properties: 0x6D,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 2097152 bytes
29884536      0x1C80078       LZMA compressed data, properties: 0x6D,
                              dictionary size: 33554432 bytes, uncompressed
                              size: 2097152 bytes
30013084      0x1C9F69C       LZMA compressed data, properties: 0x5D,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 33554432 bytes
30013204      0x1C9F714       LZMA compressed data, properties: 0x8B,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 33554432 bytes
30013284      0x1C9F764       LZMA compressed data, properties: 0x99,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 33554432 bytes
30013444      0x1C9F804       LZMA compressed data, properties: 0xB7,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 50331648 bytes
30013524      0x1C9F854       LZMA compressed data, properties: 0xBD,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 50331648 bytes
30052808      0x1CA91C8       ELF 32-bit LSB relocatable, ARM, version 1 (SYSV)
30211112      0x1CCFC28       LZMA compressed data, properties: 0x5A,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 33554432 bytes
30211312      0x1CCFCF0       LZMA compressed data, properties: 0x90,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 33554432 bytes
30211632      0x1CCFE30       LZMA compressed data, properties: 0xC6,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 50331648 bytes
30212285      0x1CD00BD       LZMA compressed data, properties: 0x5D,
                              dictionary size: 8388608 bytes, missing
                              uncompressed size
30263888      0x1CDCA50       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
30402456      0x1CFE798       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
30428768      0x1D04E60       LZMA compressed data, properties: 0xD8,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 50331648 bytes
30429256      0x1D05048       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
30464952      0x1D0DBB8       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
30470649      0x1D0F1F9       LZMA compressed data, properties: 0x5D,
                              dictionary size: 2097152 bytes, missing
                              uncompressed size
30545472      0x1D21640       LZMA compressed data, properties: 0xD8,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 50331648 bytes
30545952      0x1D21820       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
30940428      0x1D81D0C       LZMA compressed data, properties: 0x5D,
                              dictionary size: 2097152 bytes, missing
                              uncompressed size
31714269      0x1E3EBDD       BLCR context data (big endian, version 0)
31748089      0x1E46FF9       Copyright string: " (C) 2012 Free Software
                              Foundation, Inc.ion, Inc."

31844312      0x1E5E7D8       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
31895789      0x1E6B0ED       LZMA compressed data, properties: 0xBF,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 262144 bytes
31895812      0x1E6B104       LZMA compressed data, properties: 0xD8,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 50331648 bytes
31908808      0x1E6E3C8       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
31983144      0x1E80628       HTML document header
31984128      0x1E80A00       HTML document footer
32057806      0x1E929CE       HTML document header
32083768      0x1E98F38       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
32124440      0x1EA2E18       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
32235464      0x1EBDFC8       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
32242483      0x1EBFB33       mcrypt 2.2 encrypted data, algorithm:
                              blowfish-448, mode: CBC, keymode: 8bit
32631932      0x1F1EC7C       LZMA compressed data, properties: 0x5D,
                              dictionary size: 2097152 bytes, missing
                              uncompressed size
33019440      0x1F7D630       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
33023568      0x1F7E650       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
33418364      0x1FDEC7C       LZMA compressed data, properties: 0x5D,
                              dictionary size: 2097152 bytes, missing
                              uncompressed size
34044154      0x20778FA       Unix home path string:
                              "/home/pwdev/norman/obsidian/boss_sdk/buildroot/.
                              ./host.oem/usr/"

34244612      0x20A8804       LZMA compressed data, properties: 0x5D,
                              dictionary size: 16777216 bytes, missing
                              uncompressed size
34284461      0x20B23AD       LZMA compressed data, properties: 0x5D,
                              dictionary size: 131072 bytes, missing
                              uncompressed size
34285992      0x20B29A8       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
34296568      0x20B52F8       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
34321184      0x20BB320       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
34445552      0x20D98F0       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
34508319      0x20E8E1F       Copyright string: " 1995-2010 Jean-loup Gailly
                              and Mark Adler  Mark Adler "

34523440      0x20EC930       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
34555021      0x20F448D       LZMA compressed data, properties: 0x5D,
                              dictionary size: 524288 bytes, missing
                              uncompressed size
34555896      0x20F47F8       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
34573848      0x20F8E18       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
34610304      0x2101C80       ELF 32-bit LSB shared object, ARM, version 1
                              (SYSV)
34894520      0x21472B8       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
34904112      0x2149830       HTML document header
34904951      0x2149B77       HTML document footer
34916656      0x214C930       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
34925612      0x214EC2C       LZMA compressed data, properties: 0xB7,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 50331648 bytes
34927688      0x214F448       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
35056390      0x216EB06       Copyright string: " (c) 2000-2011 Simon
                              KelleyyZDNLERKzowefnbvhdkqr:m:p:c:l:s:i:t:u:g:a:x
                              :S:C:A:T:H:Q:I:B:F:G"

35077640      0x2173E08       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
35474076      0x21D4A9C       LZMA compressed data, properties: 0x5D,
                              dictionary size: 2097152 bytes, missing
                              uncompressed size
35524137      0x21E0E29       Copyright string: " (C) 2001-2011 Alvaro Lopez
                              Ortega.ega."

35572283      0x21ECA3B       HTML document header
35572352      0x21ECA80       HTML document footer
35575060      0x21ED514       Unix home path string:
                              "/home/pwdev/norman/obsidian/boss_sdk/buildroot/.
                              ./host.oem/usr/"

35575256      0x21ED5D8       Unix home path string:
                              "/home/pwdev/norman/obsidian/boss_sdk/buildroot/.
                              ./host.oem/usr/"

35587045      0x21F03E5       GIF image data, version "89a", 1 x 1
35587245      0x21F04AD       PNG image, 91 x 103, 8-bit/color RGBA,
                              non-interlaced
35595323      0x21F243B       HTML document header
35601299      0x21F3B93       Copyright string: " (C) 2001 - 2011 <a
                              href="
http://www.alobbs.com/">Alvaro Lopez
                              //www.alobbs.com/"
>Alvaro Lopez Ortega</a>
                              &lt;alvaro@alobbs.co"
35602089      0x21F3EA9       HTML document footer
35615477      0x21F72F5       HTML document header
35616562      0x21F7732       HTML document footer
35628272      0x21FA4F0       gzip compressed data, from Unix, NULL date: Thu
                              Jan  1 01:00:00 1970
35638480      0x21FCCD0       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35639352      0x21FD038       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35640256      0x21FD3C0       PNG image, 16 x 16, 8-bit gray+alpha,
                              non-interlaced
35640888      0x21FD638       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35641968      0x21FDA70       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35642816      0x21FDDC0       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35643992      0x21FE258       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35645024      0x21FE660       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35645984      0x21FEA20       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35646896      0x21FEDB0       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35647696      0x21FF0D0       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35648528      0x21FF410       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35648992      0x21FF5E0       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35649872      0x21FF950       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35650824      0x21FFD08       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35651760      0x22000B0       PNG image, 16 x 16, 8-bit gray+alpha,
                              non-interlaced
35652432      0x2200350       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35653312      0x22006C0       PNG image, 424 x 214, 8-bit/color RGBA,
                              non-interlaced
35653422      0x220072E       Zlib compressed data, compressed, uncompressed
                              size >= 163840
35727488      0x2212880       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35728312      0x2212BB8       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35729192      0x2212F28       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35730208      0x2213320       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35731136      0x22136C0       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35732088      0x2213A78       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35732896      0x2213DA0       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35734032      0x2214210       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35734896      0x2214570       PNG image, 16 x 16, 8-bit gray+alpha,
                              non-interlaced
35735472      0x22147B0       PNG image, 16 x 16, 8-bit/color RGBA,
                              non-interlaced
35736878      0x2214D2E       HTML document header
35738729      0x2215469       HTML document footer
35739696      0x2215830       Executable script, shebang: "
/bin/sh"
36171552      0x227EF20       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
36475686      0x22C9326       Copyright string: "
(c) 2002-2010, Jouni Malinen
                              <j@w1.fi> and contributorsj@w1.fi> and
                              contributors"
36493736      0x22CD9A8       LZMA compressed data, properties: 0x5D,
                              dictionary size: 16777216 bytes, missing
                              uncompressed size
36560802      0x22DDFA2       XML document, version: "
1.0"
36563394      0x22DE9C2       XML document, version: "
1.0"
36566949      0x22DF7A5       XML document, version: "
1.0"
36567984      0x22DFBB0       XML document, version: "
1.0"
36568236      0x22DFCAC       LZMA compressed data, properties: 0x5D,
                              dictionary size: 2097152 bytes, missing
                              uncompressed size
36584784      0x22E3D50       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
36605168      0x22E8CF0       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
36768896      0x2310C80       LZMA compressed data, properties: 0xB7,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 50331648 bytes
36769456      0x2310EB0       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
36798227      0x2317F13       Copyright string: "
(c) 2004-2011, Jouni Malinen
                              <j@w1.fi> and contributorsj@w1.fi> and
                              contributors"
36823096      0x231E038       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
36836615      0x2321507       Copyright string: "
(c) 2004-2010, Jouni Malinen
                              <j@w1.fi> and contributorsj@w1.fi> and
                              contributors"
36846232      0x2323A98       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
37240172      0x2383D6C       LZMA compressed data, properties: 0x5D,
                              dictionary size: 2097152 bytes, missing
                              uncompressed size
37435016      0x23B3688       LZMA compressed data, properties: 0x5D,
                              dictionary size: 16777216 bytes, missing
                              uncompressed size
37478311      0x23BDFA7       Copyright string: "
(c) 2003-2011, Jouni Malinen
                              <j@w1.fi> and contributorsj@w1.fi> and
                              contributors"
37501256      0x23C3948       ELF 32-bit LSB relocatable, ARM, version 1 (SYSV)
37802408      0x240D1A8       LZMA compressed data, properties: 0x89,
                              dictionary size: 16777216 bytes, uncompressed
                              size: 33554432 bytes
37893128      0x2423408       Executable script, shebang: "
/bin/sh"
37896705      0x2424201       HTML document header
37896838      0x2424286       HTML document footer
37897120      0x24243A0       Executable script, shebang: "
/bin/sh"
37898448      0x24248D0       Executable script, shebang: "
/bin/sh"
37901056      0x2425300       Executable script, shebang: "
/bin/sh"
37901976      0x2425698       Executable script, shebang: "
/bin/sh"
37904744      0x2426168       Executable script, shebang: "
/bin/sh"
37907320      0x2426B78       Executable script, shebang: "
/bin/sh"
37908240      0x2426F10       Executable script, shebang: "
/bin/sh"
37909496      0x24273F8       Executable script, shebang: "
/bin/sh"
37910007      0x24275F7       Copyright string: "
(C) 2013, Ambarella Inc."
37916984      0x2429138       Executable script, shebang: "
/bin/sh"
37918240      0x2429620       Executable script, shebang: "
/bin/sh"
37920160      0x2429DA0       Executable script, shebang: "
/bin/sh"
37938440      0x242E508       Executable script, shebang: "
/bin/sh"
37939016      0x242E748       Executable script, shebang: "
/bin/sh"
37940176      0x242EBD0       Executable script, shebang: "
/bin/sh"
37940720      0x242EDF0       Executable script, shebang: "
/bin/sh"
37942000      0x242F2F0       Executable script, shebang: "
/bin/sh"
37942896      0x242F670       Executable script, shebang: "
/bin/sh"
37943296      0x242F800       Executable script, shebang: "
/bin/sh"
37943728      0x242F9B0       Executable script, shebang: "
/bin/sh"
37946056      0x24302C8       Executable script, shebang: "
/bin/sh"
37954960      0x2432590       Executable script, shebang: "
/bin/sh"
37958712      0x2433438       Executable script, shebang: "
/bin/sh"
37959840      0x24338A0       HTML document header
37960060      0x243397C       HTML document footer
37960344      0x2433A98       Executable script, shebang: "
/bin/sh"
37963840      0x2434840       Executable script, shebang: "
/bin/sh"
38784597      0x24FCE55       LZMA compressed data, properties: 0x5D,
                              dictionary size: 16777216 bytes, missing
                              uncompressed size
39001936      0x2531F50       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
39022784      0x25370C0       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
39029432      0x2538AB8       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
39054832      0x253EDF0       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
39076720      0x2544370       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
39099888      0x2549DF0       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
39104720      0x254B0D0       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
39214448      0x2565D70       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
39350776      0x25871F8       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
39382344      0x258ED48       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
39435224      0x259BBD8       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
39485832      0x25A8188       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
39516888      0x25AFAD8       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
39534696      0x25B4068       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
39584680      0x25C03A8       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
39591328      0x25C1DA0       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
39600656      0x25C4210       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
39626105      0x25CA579       Copyright string: "
(C) 2005-2011 by Zack T
                              Smith."
39645424      0x25CF0F0       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
39652691      0x25D0D53       mcrypt 2.2 encrypted data, algorithm:
                              blowfish-448, mode: CBC, keymode: 8bit
39996395      0x2624BEB       OpenSSL encryption, salted, salt: 0x2D252D32357300
40021949      0x262AFBD       HTML document header
40022179      0x262B0A3       HTML document footer
40040876      0x262F9AC       LZMA compressed data, properties: 0x5D,
                              dictionary size: 2097152 bytes, missing
                              uncompressed size
40070367      0x2636CDF       Private key in DER format (PKCS#8),
40070685      0x2636E1D       Private key in DER format (PKCS#8),
40071293      0x263707D       Private key in DER format (PKCS#8),
40072484      0x2637524       Private key in DER format (PKCS#8),
40082304      0x2639B80       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
40304648      0x2670008       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
40319424      0x26739C0       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
40350048      0x267B160       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
40357944      0x267D038       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
40395507      0x26862F3       Copyright string: "
(C) 2001 Erik Andersen
                              <andersen@codepoet.org>en@codepoet.org>"
40409610      0x2689A0A       Unix home path string: "
/home/ftp:/bin/sh"
40409742      0x2689A8E       Unix home path string: "
/home/default:/bin/sh"
40411767      0x268A277       mcrypt 2.2 encrypted data, algorithm:
                              blowfish-448, mode: CBC, keymode: 8bit
40411855      0x268A2CF       mcrypt 2.2 encrypted data, algorithm:
                              blowfish-448, mode: CBC, keymode: 8bit
40412031      0x268A37F       mcrypt 2.2 encrypted data, algorithm:
                              blowfish-448, mode: CBC, keymode: 8bit
40412104      0x268A3C8       Executable script, shebang: "
/bin/sh"
40412576      0x268A5A0       Executable script, shebang: "
/bin/sh"
40414224      0x268AC10       Executable script, shebang: "
/bin/sh"
40414760      0x268AE28       Executable script, shebang: "
/bin/sh"
40417032      0x268B708       Executable script, shebang: "
/bin/sh"
40418272      0x268BBE0       Executable script, shebang: "
/bin/sh"
40421680      0x268C930       Executable script, shebang: "
/bin/sh"
40426512      0x268DC10       Executable script, shebang: "
/bin/sh"
40426896      0x268DD90       Executable script, shebang: "
/bin/sh"
40427320      0x268DF38       Executable script, shebang: "
/bin/sh"
40432816      0x268F4B0       Executable script, shebang: "
/bin/sh"
40433208      0x268F638       Executable script, shebang: "
/usr/bin/perl"
40439208      0x2690DA8       Executable script, shebang: "
/bin/sh"
40439600      0x2690F30       Executable script, shebang: "
/usr/bin/perl -w"
40439670      0x2690F76       Copyright string: "
(c) 2002 The OpenTSA Project.
                              All rights reserved. All rights reserved."
40482544      0x269B6F0       ELF 32-bit LSB executable, ARM, version 1 (SYSV)
40877036      0x26FBBEC       LZMA compressed data, properties: 0x5D,
                              dictionary size: 2097152 bytes, missing
                              uncompressed size
41039140      0x2723524       Zip multi-volume archive data, at least PKZIP
                              v2.50 to extract
41312096      0x2765F60       CramFS filesystem, little endian size 950912
                              version #2 hole_support CRC 0x62656572, edition
                              950934, 0 blocks, 873122 files


Scan Time:     2015-10-23 13:37:14
Target File:   _xsight1.8.07.343.bin.extracted/8D1C24
MD5 Checksum:  21b60e42a19e6cdab004f7915287d54a
Signatures:    285

DECIMAL       HEXADECIMAL     DESCRIPTION
--------------------------------------------------------------------------------
17132         0x42EC          MPFS (Microchip) filesystem, version 61.121,
                              17162 file entries
17150         0x42FE          MPFS (Microchip) filesystem, version 95.77, 21839
                              file entries
26473         0x6769          MPFS (Microchip) filesystem, version 61.121, 8970
                              file entries
26490         0x677A          MPFS (Microchip) filesystem, version 95.80, 21327
                              file entries

Sadly, this turned up blank as all the firmware reversing tutorials (1,2,3,4,5) I had found on the net were pretty different to this.

I decided to check the firmware for strings, this is usually the first thing I do when performing tasks like this but I decided due to the size(~40MB) of the firmware files that this would be a time consuming process. This was confirmed when I realised the output from running strings against the firmware resulted in over 100,000 results:

1
2
root@kali:~/Desktop/xSightFirmware# strings -8 xsight1.8.07.343.bin | tee strings.343.txt | wc -l
117281

Looking into my strings.343.txt file allowed me to narrow down my search further:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
root@kali:~/Desktop/xSightFirmware# grep "init.d" strings.343.txt
Warning, call load_dsp_init_data too early.
pdm_init_diskmanager failed
callback app, pwr_beep_init_done
callback app, aenc_init_done
callback app, adec_init_done
HLS did not inited!
 t dspinfo dsp_info                 - dsp init data
streaming_api is not inited
%s: streaming_api is not inited
 amba_streaming Already inited!
 UVC Already inited!
uvc_api is not inited
%s: uvc_api is not inited
AMBA Network IO stream was inited before
AMBA LNX FIO stream was inited before
Example Network IO stream was already inited
%s: example_network_stream is NOT inited. status:%d
AMP_init_de_params
 img_init_de_params_multi : Wrong type!!!
AMBA_YUVIMG: yuv_init_device() fail
sync_dsp_init_data() fail
========== sync dsp_init_data ===========
Warning, call init_dsp_cmd_msg_param too early.
AMBA Avimux was inited before
AMBA Null IO stream was inited before
AMBA Dummymux was inited before
AMBA Custommux was inited before
AMBA isodemux fmt was inited before
AMBA tsmux was inited before, maybe avchd already init
%s: AMBA movmux was inited before..
%s: AMBA mp4mux was inited before..
%s: AMBA m4amux was inited before..
%s: AMBA msmp4mux was inited before..
%s: AMBA 3gpmux was inited before..
boss: initrd = %08x, %08x
AMBA img sensor2 has been inited.
aini_chksta_all_init_done
aini_chksta_enc_init_done
aini_chksta_dec_init_done
aini_chksta_infra_init_done
init_date_sort_file
noinitrd
retain_initrd
keepinitrd
<2>initrd overwritten (0x%08lx < 0x%08lx) - disabling it.
/initrd.image
<5>Trying to move old root to /initrd ...
/root/initrd
/initrd does not exist. Ignored.
/initrd.image
<6>rootfs image is not initramfs (%s); looks like an initrd
/initrd.image
ambarella_init_dma
tty_init_dev
<3>INITRD: 0x%08lx+0x%08lx overlaps in-use memory region - disabling initrd
<6>tty_init_dev: ldisc open failed, clearing slot %d
sock_init_data
init_dummy_netdev
xdr_init_decode
FIXME: unsafe to do th1_stack_check_init during th2 mode transitiono
FIXME: unsafe to do th1_stack_check_init during th3 mode transitiono
still_rm_init_dma-reg() START
still_rm_init_dma-reg() END
still_rm_init_dyn_smem. END w=%d
still_rm_init_dyn_smem(): STILL_SMEM_COMMON_ALL: base=0x%x, size=%d
still_rm_init_dyn_smem(): STILL_SMEM_COMMON_1 base=0x%x, size=%d
still_rm_init_dyn_smem(): extended STILL_SMEM_COMMON_1 and size_extra=%d
still_rm_init_dyn_smem. STILL_SMEM_COMMON_1 usage=%d
still_rm_init_dyn_smem. START w=%d
still_mctf_init_dma: START >>> cmd_seq=%d smem_index_base=0x%x, dram_index_base=0x%x
still_mctf_init_dma: END <<<
TH%d MEMD memd_hl_init_dma: end at , %d
TH%d MEMD memd_hl_init_dma: start at , %d
init_dpb() rd %d, wr %d
init_dummy_netdev
Not inited yet!
ar6000_dbglog_init_done
        elif [ -e /etc/init.d/S51hibernation ]; then
main: Exam_framer inited!
main: AmbaStream inited!
Not inited yet!
already inited...
# Note: BusyBox init doesn't support runlevels.  The runlevels field is
ttyS1::sysinit:/etc/init.d/rcS
# Start all init scripts in /etc/init.d
for i in /etc/init.d/S??* ;do
/etc/init.d/rcS

This didn’t really help me in identifying what’s running on the device so I decided to actually start physically connecting to the device.
The device has the options to act as a wireless hotspot which you then connect your phone to in order to remotely view the screen by using the provided ATN Obsidian application. This application allows you to configure the settings of the device and view the stored photos and videos (did I not mention this scope allows you to record your hunting activities?).
screen520x924-2screen520x924

Rather than connect my iPhone to the sight I instead connected my laptop so that I could see what services are visible on the device. I was expecting to see SSH, HTTPS and some form of streaming service for the video. What I actually found was telnet, HTTP and some other clear text services.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Nmap scan report for 192.168.42.1
Host is up (0.012s latency).
Not shown: 65529 closed ports
PORT     STATE SERVICE VERSION
23/tcp   open  telnet  BusyBox telnetd
53/tcp   open  domain  dnsmasq 2.59
| dns-nsid:
|_  bind.version: dnsmasq-2.59
80/tcp   open  http    Cherokee httpd 1.2.101b150723_
|_http-server-header: Cherokee/1.2.101b150723_ (UNIX)
|_http-title: Site doesn't have a title (text/html; charset=utf-8).
554/tcp  open  rtsp?
|_rtsp-methods: OPTIONS, DESCRIBE, SETUP, TEARDOWN, PLAY, PAUSE, GET_PARAMETER, SET_PARAMETER
7878/tcp open  unknown
8787/tcp open  unknown
MAC Address: 34:28:F0:XX:XX:XX (ATN International Limited)
Device type: general purpose
Running: Linux 2.6.X|3.X
OS CPE: cpe:/o:linux:linux_kernel:2.6 cpe:/o:linux:linux_kernel:3
OS details: Linux 2.6.38 - 3.0
Network Distance: 1 hop
Service Info: Host: buildroot; OS: Unix

Nmap scan report for 192.168.42.1
Host is up (0.013s latency).
Scanned at 2015-10-23 14:18:47 BST for 1091s
Not shown: 998 closed ports
PORT   STATE         SERVICE
53/udp open          domain
67/udp open|filtered dhcps
MAC Address: 34:28:F0:XX:XX:XX (ATN International Limited)

I connected to the web service bring provided by Cherokee HTTP Daemon on TCP port 80. This just appeared to be a presentation of the memory card contents and a few other (possibly symlinked) directories.
Screen Shot 2015-10-23 at 14.18.02

I wanted to see if i could identify the URL for the RTSP service running on TCP port 554. NMAP has an NSE script that can do this, sadly it didn’t come up trumps:

1
2
3
4
5
6
7
Nmap scan report for 192.168.42.1
Host is up (0.0054s latency).
PORT    STATE SERVICE
554/tcp open  rtsp
| rtsp-url-brute:
|   An error occurred while testing the following URLs
|_    rtsp://192.168.42.1/cam1/h264

The telnet service presented a login option so i thought it was worth looking through the firmware to see if i could identify the password. I proceeded to see if I could identify the root password hash in order to brute force that to try and gain access via the telnet service.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
root@kali:~/Desktop/xSightFirmware# grep "root:" strings.343.txt
nfs_get_root: getattr error = %d
nfs_get_root: get root inode failed
nfs_get_root: get root dentry failed
<5>UBIFS: reserved for root:  %llu bytes (%llu KiB)
cannot chdir to filesystem root: %s
      chroot: 'Chroot jail',
document_root:             %s
root:x:0:
root::10933:0:99999:7:::
root:x:0:0:root:/root:/bin/sh
null        root:root 666 @chmod 666 $MDEV
zero        root:root 666
full        root:root 666
random      root:root 444
urandom     root:root 444
hwrandom    root:root 444
grsec       root:root 660
kmem        root:root 640
mem     root:root 640
port        root:root 640
console     root:tty 600 @chmod 600 $MDEV
ptmx        root:tty 666
pty.*       root:tty 660
tty     root:tty 666
tty[0-9]*   root:tty 660
vcsa*[0-9]* root:tty 660
ttyS[0-9]*  root:root 660
pcm.*       root:audio 660 =snd/
control.*   root:audio 660 =snd/
midi.*      root:audio 660 =snd/
seq     root:audio 660 =snd/
timer       root:audio 660 =snd/
event[0-9]+ root:root 640 =input/
mice        root:root 640 =input/
mouse[0-9]  root:root 640 =input/

Well, blimey, the password hash section is blank(see lines 9,10,11), surely there is a root password? Nope!

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
phillips321@Macbook ~> telnet 192.168.42.1
Trying 192.168.42.1...
Connected to 192.168.42.1.
Escape character is '^]'.

buildroot login: root
~ # netstat -lnp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:7878            0.0.0.0:*               LISTEN      725/network_message
tcp        0      0 0.0.0.0:554             0.0.0.0:*               LISTEN      756/AmbaOnDemandRTS
tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      735/cherokee-worker
tcp        0      0 0.0.0.0:8787            0.0.0.0:*               LISTEN      725/network_message
tcp        0      0 0.0.0.0:53              0.0.0.0:*               LISTEN      971/dnsmasq
tcp        0      0 0.0.0.0:23              0.0.0.0:*               LISTEN      687/telnetd
netstat: /proc/net/tcp6: No such file or directory
udp        0      0 0.0.0.0:53              0.0.0.0:*                           971/dnsmasq
udp        0      0 0.0.0.0:67              0.0.0.0:*                           971/dnsmasq
udp        0      0 0.0.0.0:7877            0.0.0.0:*                           725/network_message
netstat: /proc/net/udp6: No such file or directory
netstat: /proc/net/raw6: No such file or directory
Active UNIX domain sockets (only servers)
Proto RefCnt Flags       Type       State         I-Node PID/Program name    Path

Ok, now that I had root access to the device I could start investigating the app. What I decided to do was monitor the comms coming to the device using tcpdump. As this is a cut down OS running busybox it was clear that tcpdump wasn’t present. A quick google found me precompiled tcpdump for android (http://www.androidtcpdump.com). I download this, uploaded it to the memory card and then navigated to the directory /var/www/DCIM/ in order to run it.

And this is where this post will end. But to give you a snippet this is what I’ve got planned for part 2:
Screen Shot 2015-11-19 at 14.07.16

Further reading:
http://copter.sovgvd.info/a/Xiaomi-Yi-protocol-remote-control
https://www.blackhat.com/docs/us-15/materials/us-15-Sandvik-When-IoT-Attacks-Hacking-A-Linux-Powered-Rifle.pdf
http://www.hackseagatesatellite.com/wordpress/wp-content/uploads/2011/11/Basic-Mod-Step-1-SSH.pdf
https://www.defcon.org/images/defcon-21/dc-21-presentations/Manning-Lanier/DEFCON-21-Manning-Lanier-GoPro-or-GTFO-Updated.pdf

4 Responses to Hacking the ATN X-sight – part1

Leave a Reply
